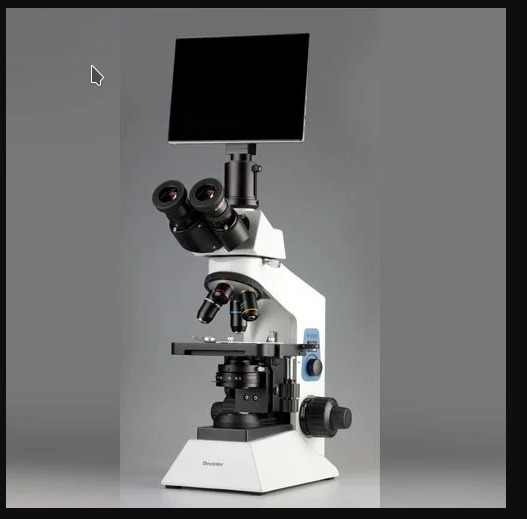

Digital Biological Microscope

Digital Biological Microscope
Digital Biological Microscope
Send Inquiry
Product Code : EXCEL
Brand Name : Dewinter
Product Description

We are a prominent manufacturer and exporter of high quality Digital Biological Microscope that is used in science labs to see microorganisms that are too small for the naked eye. It is designed by our professionals using the best quality components and advanced technology as per the set industry norms. The offered Digital Biological Microscope is known for its robustness, accurate functioning, compact design and long service life. Our clients can avail this microscope from us at very nominal price.

DIGITAL BIOLOGICAL MICROSCOPE: MODEL- DIGI EXCEL

BINOCULAR OBSERVATION HEAD WITH BUILT-IN CAMERA

  • Sliding observation head inclined at 45° rotatable at 360°.

  • Diopter adjustment ring on ocular tube. Interpupillary distance from 55mm to 75mm.

  • Built-in head 1.3 Mega Pixel camera with USB 2 output.

EYEPIECE
Wide field 10X(Paired)  FOV 18mm

OBJECTIVES (FINITE)

  • E-Plan Achromatic 4X
  • E-Plan Achromatic 10X
  • E-Plan Achromatic 40X(S L)
  • E-Plan Achromatic 100X Oil(S L)



MECHANICAL BODY

  • Co-axial focusing system. PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.The slow motion has 1Div=0.002mm.
  • Quadruple nosepiece revolves on ball bearing. Mechanical stage size 140mm X 140mm having low positioned co-axial controls on ball bearing.
  • Built-in-base illumination system with 6V-20W halogen bulb and power supply.
  • Cross movement 55mm X 75mm.



SUB STAGE CONDENSER



Abbe Condenser N.A.1.25 swing out filter holder, Iris Diaphragm.



STANDARD ACCESSORIES



Halogen lamp 6V/20W, Blue & Grey filter, STYRO FOAM  Molded pack.






DEWINTER OPTICAL INC.
