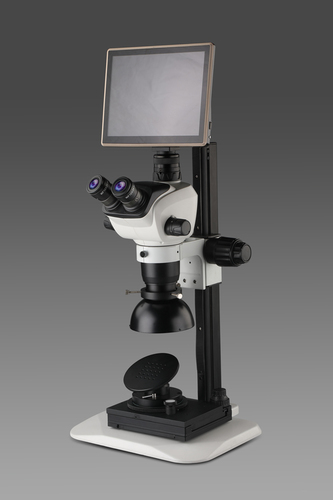

DEWINTER DIGITAL STEREO ZOOM MICROSCOPE
MODEL : DIGI ZOOMSTAR-IV
8” Touch screen, high resolution ( 2592x 1944) color LCD.
Built-in camera with 5.0 Megapixel resolution.
Pre loaded capture & measurement software.
LCD screen can be rotated at 360° Horizontally, 90° vertically.
OS : Android 4.1.1
CPU : Dual core 1.5 GHz, 1G(DDR3) Memory, Internal 5GB or external Mini SD card HDMI display.
Output ports : one HDMI, one USB 2.0, one Mini USB.
Trinocular Observation Head
Observation head inclined at 45° rotatable at 360°.
Vertical phototube for micro photography.
Diopter adjustment ring on ocular tube.
Interpupillary distance from 50mm to 75mm.
Eyepiece ( Antifungus )
Wide field 10X (paired) F.O.V. 24mm.
Zooming Range & Ratio
Zoom 0.66X to 5.1X with
magnification ratio of 1:7:8
Long Track stand with coarse and fine focusing movement and fan type base .
Lateral zoom control movement.
Clip for holding specimen.
Base Size is 280X300mm.
Incident dome light system.
Both lights are regulated with power supply and has separate brightness controls.
Operating manual, dust cover, guarantee card and Styrofoam molded pack.
