DIGITAL MICROSCOPE

Product Description

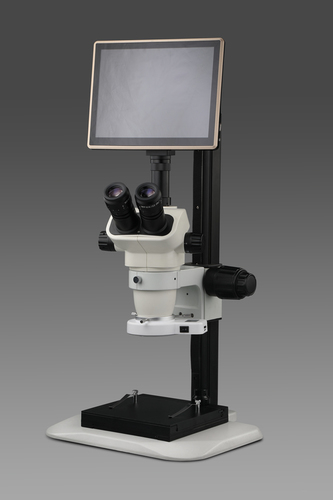

DEWINTER DIGITAL STEREO ZOOM MICROSCOPE

MODEL : DIGI ZOOMSTAR-III

Cell Pad.

• 8 Touch screen, high resolution ( 2592x 1944) color LCD.

• Built-in camera with 5.0 Megapixel resolution.

• Pre loaded capture & measurement software.

• LCD screen can be rotated at 360 Horizontally, 90 vertically.

• OS : Android 4.1.1

• CPU : Dual core 1.5 GHz, 1G(DDR3) Memory, Internal 5GB or external Mini SD card HDMI display.

• Output ports : one HDMI, one USB 2.0, one Mini USB.

Trinocular Observation Head

• Observation head inclined at 45 rotatable at 360.

• Vertical phototube for micro photography.

• Diopter adjustment ring on ocular tube.

• Interpupillary distance from 50mm to 75mm.

Eyepiece ( Antifungus )

Wide field 10X (paired) F.O.V. 24mm.

Zooming Range & Ratio

Zoom 0.66X to 5.1X with

magnification ratio of 1:7:8

Magnification Range

6.6X-51X.

Working Distance

110 mm.

Mechanical Body

• Track stand with fan type base .

• Lateral zoom control movement.

• Clip for holding specimen.

• Base Size is 280X300mm.

• Movable Mechanical XY Stage.

Illumination system

Incident ring led light system.

Both lights are regulated with power supply and has separate brightness controls.

Standard Accessories

Operating manual, dust cover, guarantee card and Styrofoam molded pack.
