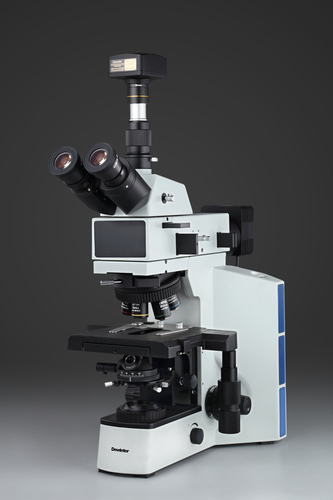

Trinocular Metallurgical Microscope

Trinocular Metallurgical Microscope
Trinocular Metallurgical Microscope
Send Inquiry
Product Code : DMI EDUCATOR
Brand Name : Dewinter
Product Description

Since our inception, we have been engaged in offering a comprehensive range of Trinocular Metallurgical Microscope that is widely used in scientific labs to analyze small particles. Designed and manufactured using high quality components, the offered microscope is available in various technical specifications as per clients’ specific requirements. The offered Trinocular Metallurgical Microscope is well-known for its excellent performance, durability, clear visibility and robust design.

DMI EDUCATOR

Binocular Inverted Materials Microscope


Binocular Observation Head

  • Siedentopf observation head inclined at 45°

  • Diopter adjustment ring on ocular tube.

  • Interpupillary distance from 50mm to 75mm.


Eyepiece

Wide field eyepiece 10X (paired)

F.O.V. 18mm.


Objectives (Infinity corrected)

M Long working distance plan 4X

M Long working distance plan 10X

M Long working distance plan 40X (S.L.)


Mechanical Body

  • Co-axial focusing system with large knobs, pre-focusing lever & tension adjustment ring.

  • Quadruple nosepiece on ball bearing.

  • Mechanical stage is 182mm X 195mm.

  • The Mechanical stage has low positioned co-axial controls on ball bearing guide ways.

Illuminator

The Epi illuminator has 3w lamp with variable brightness control.


Standard Accessories

Blue, green & yellow filters, operating manual, dust cover, styrofoam molded pack.
